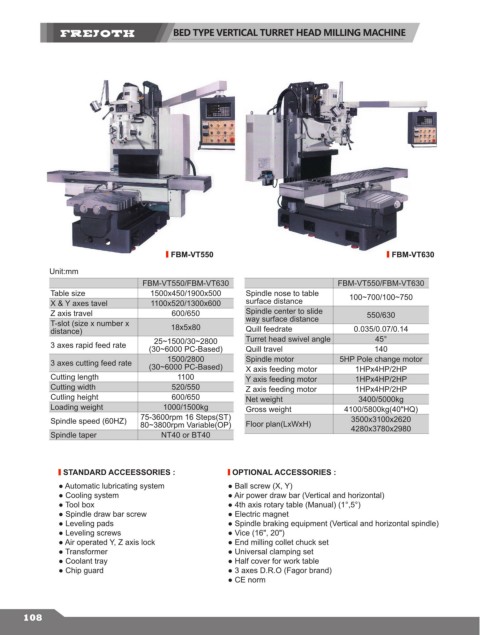

BED TYPE VERTICAL TURRET HEAD MILLING MACHINE

FBM-VT550 FBM-VT630
Unit:mm
FBM-VT550/FBM-VT630 FBM-VT550/FBM-VT630
Table size 1500x450/1900x500 Spindle nose to table 100~700/100~750
X & Y axes tavel 1100x520/1300x600 surface distance
Z axis travel 600/650 Spindle center to slide 550/630
T-slot (size x number x 18x5x80 way surface distance
distance) Quill feedrate 0.035/0.07/0.14
45°
25~1500/30~2800
3 axes rapid feed rate (30~6000 PC-Based) Turret head swivel angle 140
Quill travel
1500/2800
3 axes cutting feed rate (30~6000 PC-Based) Spindle motor 5HP Pole change motor
X axis feeding motor
1HPx4HP/2HP
Cutting length 1100 Y axis feeding motor 1HPx4HP/2HP
Cutting width 520/550 Z axis feeding motor 1HPx4HP/2HP
Cutling height 600/650 Net weight 3400/5000kg
Loading weight 1000/1500kg Gross weight 4100/5800kg(40"HQ)
Spindle speed (60HZ) 75-3600rpm 16 Steps(ST) Floor plan(LxWxH) 3500x3100x2620
80~3800rpm Variable(OP)
Spindle taper NT40 or BT40 4280x3780x2980

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :

● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Air operated Y, Z axis lock ● End milling collet chuck set
● Transformer ● Universal clamping set
● Coolant tray ● Half cover for work table
● Chip guard ● 3 axes D.R.O (Fagor brand)
● CE norm
