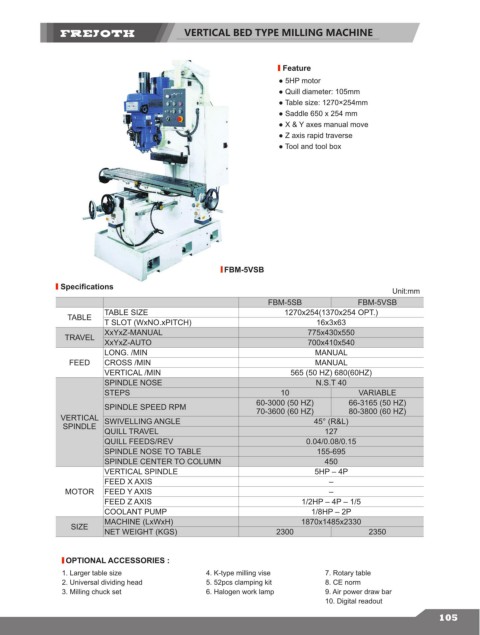

VERTICAL BED TYPE MILLING MACHINE

Feature
● 5HP motor
● Quill diameter: 105mm
● Table size: 1270×254mm
● Saddle 650 x 254 mm
● X & Y axes manual move
● Z axis rapid traverse
● Tool and tool box

FBM-5VSB

Specifications
Unit:mm
FBM-5SB FBM-5VSB
TABLE SIZE 1270x254(1370x254 OPT.)
TABLE
T SLOT (WxNO.xPITCH) 16x3x63
XxYxZ-MANUAL 775x430x550
TRAVEL
XxYxZ-AUTO 700x410x540
LONG. /MIN MANUAL
FEED CROSS /MIN MANUAL
VERTICAL /MIN 565 (50 HZ) 680(60HZ)
SPINDLE NOSE N.S.T 40
STEPS 10 VARIABLE
60-3000 (50 HZ) 66-3165 (50 HZ)
SPINDLE SPEED RPM 70-3600 (60 HZ) 80-3800 (60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L)
SPINDLE
QUILL TRAVEL 127
QUILL FEEDS/REV 0.04/0.08/0.15
SPINDLE NOSE TO TABLE 155-695
SPINDLE CENTER TO COLUMN 450
VERTICAL SPINDLE 5HP – 4P
FEED X AXIS –
MOTOR FEED Y AXIS –
FEED Z AXIS 1/2HP – 4P – 1/5
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1870x1485x2330
SIZE
NET WEIGHT (KGS) 2300 2350

OPTIONAL ACCESSORIES :
1. Larger table size 4. K-type milling vise 7. Rotary table
2. Universal dividing head 5. 52pcs clamping kit 8. CE norm
3. Milling chuck set 6. Halogen work lamp 9. Air power draw bar
10. Digital readout
