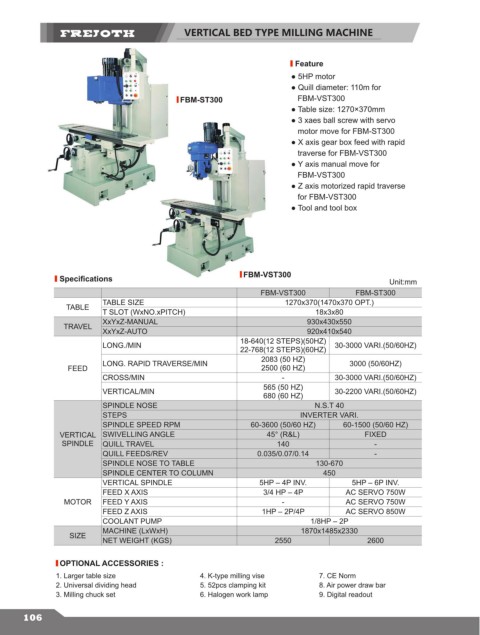

VERTICAL BED TYPE MILLING MACHINE

Feature
● 5HP motor
● Quill diameter: 110m for
FBM-ST300 FBM-VST300
● Table size: 1270×370mm
● 3 xaes ball screw with servo
motor move for FBM-ST300
● X axis gear box feed with rapid
traverse for FBM-VST300
● Y axis manual move for
FBM-VST300
● Z axis motorized rapid traverse
for FBM-VST300
● Tool and tool box

FBM-VST300
Specifications Unit:mm
FBM-VST300 FBM-ST300
TABLE SIZE 1270x370(1470x370 OPT.)
TABLE
T SLOT (WxNO.xPITCH) 18x3x80
XxYxZ-MANUAL 930x430x550
TRAVEL
XxYxZ-AUTO 920x410x540
LONG./MIN 18-640(12 STEPS)(50HZ) 30-3000 VARI.(50/60HZ)
22-768(12 STEPS)(60HZ)
2083 (50 HZ)
LONG. RAPID TRAVERSE/MIN 3000 (50/60HZ)
FEED 2500 (60 HZ)
CROSS/MIN - 30-3000 VARI.(50/60HZ)

VERTICAL/MIN 565 (50 HZ) 30-2200 VARI.(50/60HZ)
680 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS INVERTER VARI.
SPINDLE SPEED RPM 60-3600 (50/60 HZ) 60-1500 (50/60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L) FIXED
SPINDLE QUILL TRAVEL 140 -
QUILL FEEDS/REV 0.035/0.07/0.14 -
SPINDLE NOSE TO TABLE 130-670
SPINDLE CENTER TO COLUMN 450
VERTICAL SPINDLE 5HP – 4P INV. 5HP – 6P INV.
FEED X AXIS 3/4 HP – 4P AC SERVO 750W
MOTOR FEED Y AXIS - AC SERVO 750W
FEED Z AXIS 1HP – 2P/4P AC SERVO 850W
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1870x1485x2330
SIZE
NET WEIGHT (KGS) 2550 2600
