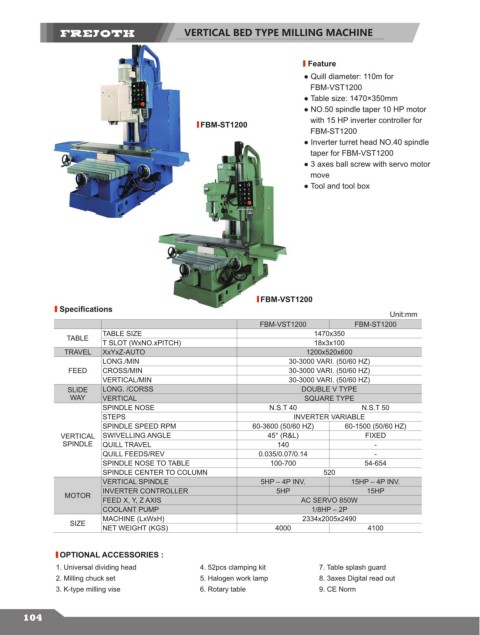

VERTICAL BED TYPE MILLING MACHINE

Feature
● Quill diameter: 110m for
FBM-VST1200
● Table size: 1470×350mm
● NO.50 spindle taper 10 HP motor
with 15 HP inverter controller for
FBM-ST1200
FBM-ST1200
● Inverter turret head NO.40 spindle
taper for FBM-VST1200
● 3 axes ball screw with servo motor
move
● Tool and tool box

FBM-VST1200
Specifications
Unit:mm
FBM-VST1200 FBM-ST1200
TABLE SIZE 1470x350
TABLE
T SLOT (WxNO.xPITCH) 18x3x100
TRAVEL XxYxZ-AUTO 1200x520x600
LONG./MIN 30-3000 VARI. (50/60 HZ)
FEED CROSS/MIN 30-3000 VARI. (50/60 HZ)
VERTICAL/MIN 30-3000 VARI. (50/60 HZ)
SLIDE LONG. /CORSS DOUBLE V TYPE
WAY VERTICAL SQUARE TYPE
SPINDLE NOSE N.S.T 40 N.S.T 50
STEPS INVERTER VARIABLE
SPINDLE SPEED RPM 60-3600 (50/60 HZ) 60-1500 (50/60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L) FIXED
SPINDLE QUILL TRAVEL 140 -
QUILL FEEDS/REV 0.035/0.07/0.14 -
SPINDLE NOSE TO TABLE 100-700 54-654
SPINDLE CENTER TO COLUMN 520
VERTICAL SPINDLE 5HP – 4P INV. 15HP – 4P INV.
INVERTER CONTROLLER 5HP 15HP
MOTOR
FEED X, Y, Z AXIS AC SERVO 850W
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 2334x2005x2490
SIZE
NET WEIGHT (KGS) 4000 4100

OPTIONAL ACCESSORIES :
1. Universal dividing head 4. 52pcs clamping kit 7. Table splash guard
2. Milling chuck set 5. Halogen work lamp 8. 3axes Digital read out
3. K-type milling vise 6. Rotary table 9. CE Norm
