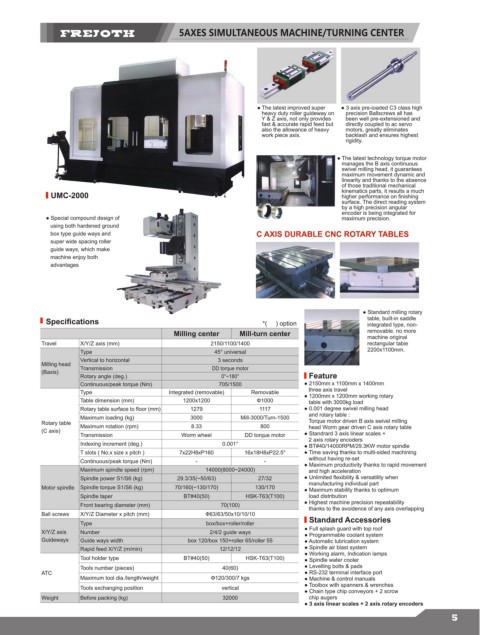

5AXES SIMULTANEOUS MACHINE/TURNING CENTER

● The latest improved super ● 3 axis pre-ioaded C3 class high
heavy duty roller guideway on precision Ballscrews all has
Y & Z axis, not only provides been well pre-extensioned and
fast & accurate rapid feed but directly coupled to ac servo
also the allowance of heavy motors, greatly eliminates
work piece axis. backlash and ensures highest
rigidity.

● The latest technology torque motor
manages the B axis continuous
swivel milling head, it guarantees
maximum movement dynamic and
linearity and thanks to the absence
of those traditional mechanical
UMC-2000 kinematics parts, it results a much
higher performance on finishing
surface. The direct reading system
by a high precision angular
encoder is being integrated for
● Special compound design of maximum precision.
using both hardened ground
box type guide ways and C AXIS DURABLE CNC ROTARY TABLES
super wide spacing roller
guide ways, which make
machine enjoy both
advantages

● Standard milling rotary
Specifications *( ) option table, built-in saddle
integrated type, non-
Milling center Mill-turn center removable. no more
machine original
Travel X/Y/Z axis (mm) 2150/1100/1400 rectangular tabie
Type 45° universal 2200x1100mm.
Vertical to horizontal 3 seconds
Milling head Transmission DD torque motor
(Baxis)
Rotary angle (deg.) 0°~180° Feature
Continuous/peak torque (Nm) 705/1500 ● 2150mm x 1100mm x 1400mm
Type Integrated (removable) Removable three axis travel
● 1200mm x 1200mm working rotary
Table dimension (mm) 1200x1200 Ф1000 table with 3000kg load
Rotary table surface to floor (mm) 1279 1117 ● 0.001 degree swivel milling head
Maximum loading (kg) 3000 Mill-3000/Turn-1500 and rotary table :
Rotary table Maximum rotation (rpm) 8.33 800 Torque motor driven B axis swivel milling
(C axis) head Worm gear driven C axis rotary table
Transmission Worm wheel DD torque motor ● Standrard 3 axis linear scales +
Indexing increment (deg.) 0.001° 2 axis rotary encoders
● BT#40/14000RPM/29.3KW motor spindle
T slots ( No.x size x pitch ) 7x22H8xP160 16x18H8xP22.5° ● Time saving thanks to multi-sided machining
Continuous/peak torque (Nm) - - without having re-set
● Maximum productivity thanks to rapid movement
Maximum spindle speed (rpm) 14000(8000~24000) and high acceleration
Spindle power S1/S6 (kg) 29.3/35(~50/63) 27/32 ● Unlimited flexibility & versatility when
manufacturing individual part
Motor spindle Spindle torque S1/S6 (kg) 70/160(~130/170) 130/170 ● Maximum stability thanks to optimum
Spindle taper BT#40(50) HSK-T63(T100) load distribution
Front bearing diameter (mm) 70(100) ● Highest machine precision repeatability
thanks to the avoidence of any axis overlapping
Ball screws X/Y/Z Diameter x pitch (mm) Ф63/63/50x10/10/10 Standard Accessories
Type box/box+roller/roller
X/Y/Z axis Number 2/4/2 guide ways ● Full splash guard with top roof
● Programmable coolant system
Guideways Guide ways width box 120/box 150+roller 65/roller 55 ● Automatic lubrication system
Rapid feed X/Y/Z (m/min) 12/12/12 ● Spindle air blast system
● Working alarm, Indication lamps
Tool holder type BT#40(50) HSK-T63(T100) ● Spindle water cooler
Tools number (pieces) 40(60) ● Levelling bolts & pads
ATC ● RS-232 terminal interface port
Maximum tool dia./length/weight Ф120/300/7 kgs ● Machine & control manuals
Tools exchanging position vertical ● Toolbox with spanners & wrenches
● Chain type chip conveyors + 2 scrcw
Weight Before packing (kg) 32000 chip augers
● 3 axis linear scales + 2 axis rotary encoders
