P. 5

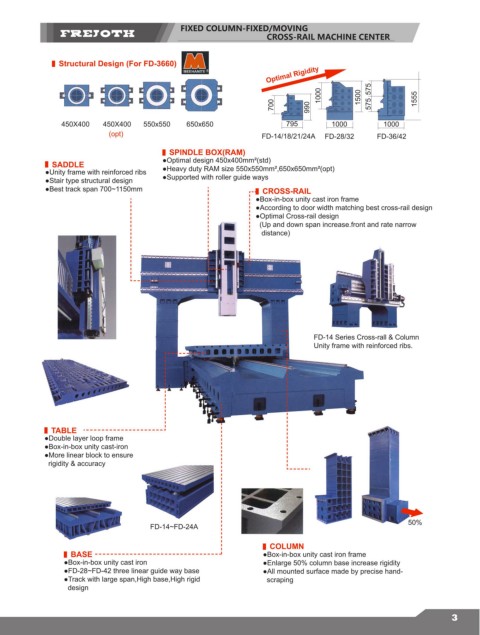

FIXED COLUMN-FIXED/MOVING
CROSS-RAIL MACHINE CENTER
Structural Design (For FD-3660)
Optimal Rigidity
1000 1500 575 1555
700 990 575
450X400 450X400 550x550 650x650 795 1000 1000
(opt) FD-14/18/21/24A FD-28/32 FD-36/42
SPINDLE BOX(RAM)
●Optimal design 450x400mm²(std)
SADDLE
●Unity frame with reinforced ribs ●Heavy duty RAM size 550x550mm²,650x650mm²(opt)
●Stair type structural design ●Supported with roller guide ways
●Best track span 700~1150mm CROSS-RAIL
●Box-in-box unity cast iron frame
●According to door width matching best cross-rail design
●Optimal Cross-rail design
(Up and down span increase.front and rate narrow
distance)
FD-14 Series Cross-rall & Column
Unity frame with reinforced ribs.
TABLE
●Double layer loop frame
●Box-in-box unity cast-iron
●More linear block to ensure
rigidity & accuracy
50%
FD-14~FD-24A
COLUMN
BASE ●Box-in-box unity cast iron frame
●Box-in-box unity cast iron ●Enlarge 50% column base increase rigidity
●FD-28~FD-42 three linear guide way base ●All mounted surface made by precise hand-
●Track with large span,High base,High rigid scraping
design
3
