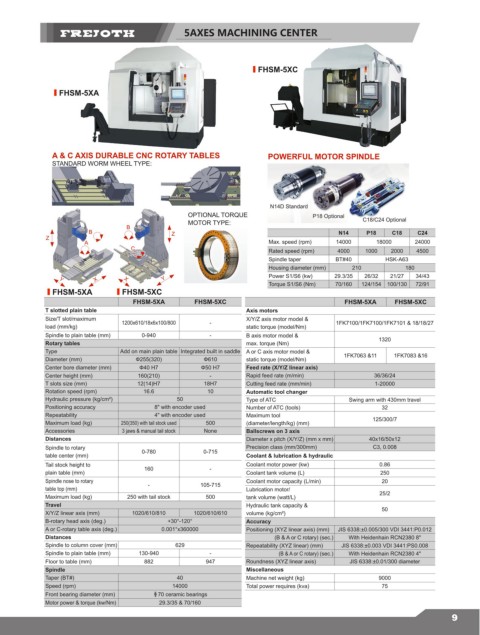

5AXES MACHINING CENTER

FHSM-5XC

FHSM-5XA

A & C AXIS DURABLE CNC ROTARY TABLES POWERFUL MOTOR SPINDLE
STANDARD WORM WHEEL TYPE:

N14D Standard
OPTIONAL TORQUE P18 Optional
MOTOR TYPE: C18/C24 Optional
B
B Z N14 P18 C18 C24
Z
A Max. speed (rpm) 14000 18000 24000
C Rated speed (rpm) 4000 1000 2000 4500
Spindle taper BT#40 HSK-A63
Housing diameter (mm) 210 180
X Y Power S1/S6 (kw) 29.3/35 26/32 21/27 34/43
Y X
Torque S1/S6 (Nm) 70/160 124/154 100/130 72/91
FHSM-5XA FHSM-5XC
*( ) option FHSM-5XA FHSM-5XC FHSM-5XA FHSM-5XC
T slotted plain table Axis motors
Size/T slot/maximum 1200x610/18x6x100/800 - X/Y/Z axis motor model & 1FK7100/1FK7100/1FK7101 & 18/18/27
load (mm/kg) static torque (model/Nm)
Spindle to plain table (mm) 0-940 - B axis motor model &
Rotary tables max. torque (Nm) 1320
Type Add on main plain table Integrated built in saddle A or C axis motor model & 1FK7063 &11 1FK7083 &16
Diameter (mm) Ф255(320) Ф610 static torque (model/Nm)
Center bore diameter (mm) Ф40 H7 Ф50 H7 Feed rate (X/Y/Z linear axis)
Center height (mm) 160(210) - Rapid feed rate (m/min) 36/36/24
T slots size (mm) 12(14)H7 18H7 Cutting feed rate (mm/min) 1-20000
Rotation speed (rpm) 16.6 10 Automatic tool changer
Hydraulic pressure (kg/cm²) 50 Type of ATC Swing arm with 430mm travel
Positioning accuracy 8" with encoder used Number of ATC (tools) 32
Repeatability 4" with encoder used Maximum tool
Maximum load (kg) 250(350) with tail stock used 500 (diameter/length/kg) (mm) 125/300/7
Accessories 3 jaws & manual tail stock None Ballscrews on 3 axis
Distances Diameter x pitch (X/Y/Z) (mm x mm) 40x16/50x12
Spindle to rotary 0-780 0-715 Precision class (mm/300mm) C3, 0.008
table center (mm) Coolant & lubrication & hydraulic
Tail stock height to 160 - Coolant motor power (kw) 0.86
plain table (mm) Coolant tank volume (L) 250
Spindle nose to rotary - 105-715 Coolant motor capacity (L/min) 20
table top (mm) Lubrication motor/
Maximum load (kg) 250 with tail stock 500 tank volume (watt/L) 25/2
Travel Hydraulic tank capacity &
X/Y/Z linear axis (mm) 1020/610/810 1020/610/610 volume (kg/cm²) 50
B-rotary head axis (deg.) +30°-120° Accuracy
A or C-rotary table axis (deg.) 0.001°x360000 Positioning (XYZ linear axis) (mm) JIS 6338:±0.005/300 VDI 3441:P0.012
Distances (B & A or C rotary) (sec.) With Heidenhain RCN2380 8"
Spindle to column cover (mm) 629 Repeatability (XYZ linear) (mm) JIS 6338:±0.003 VDI 3441:PS0.008
Spindle to plain table (mm) 130-940 - (B & A or C rotary) (sec.) With Heidenhain RCN2380 4"
Floor to table (mm) 882 947 Roundness (XYZ linear axis) JIS 6338:±0.01/300 diameter
Spindle Miscellaneous
Taper (BT#) 40 Machine net weight (kg) 9000
Speed (rpm) 14000 Total power requires (kva) 75
Front bearing diameter (mm) ∮70 ceramic bearings
Motor power & torque (kw/Nm) 29.3/35 & 70/160
