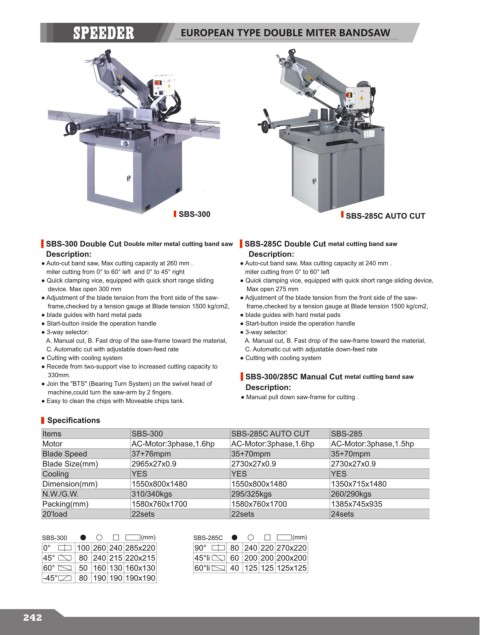

EUROPEAN TYPE DOUBLE MITER BANDSAW

SBS-300 SBS-285C AUTO CUT

SBS-300 Double Cut Double miter metal cutting band saw SBS-285C Double Cut metal cutting band saw
Description: Description:
● Auto-cut band saw, Max cutting capacity at 260 mm . ● Auto-cut band saw, Max cutting capacity at 240 mm .
miter cutting from 0° to 60° left and 0° to 45° right miter cutting from 0° to 60° left
● Quick clamping vice, equipped with quick short range sliding ● Quick clamping vice, equipped with quick short range sliding device,
device. Max open 300 mm Max open 275 mm
● Adjustment of the blade tension from the front side of the saw- ● Adjustment of the blade tension from the front side of the saw-
frame,checked by a tension gauge at Blade tension 1500 kg/cm2, frame,checked by a tension gauge at Blade tension 1500 kg/cm2,
● blade guides with hard metal pads ● blade guides with hard metal pads
● Start-button inside the operation handle ● Start-button inside the operation handle
● 3-way selector: ● 3-way selector:
A. Manual cut, B. Fast drop of the saw-frame toward the material, A. Manual cut, B. Fast drop of the saw-frame toward the material,
C. Automatic cut with adjustable down-feed rate C. Automatic cut with adjustable down-feed rate
● Cutting with cooling system ● Cutting with cooling system
● Recede from two-support vise to increased cutting capacity to
330mm. SBS-300/285C Manual Cut metal cutting band saw
● Join the "BTS" (Bearing Turn System) on the swivel head of Description:
machine,could turn the saw-arm by 2 fingers.
● Easy to clean the chips with Moveable chips tank. ● Manual pull down saw-frame for cutting .

Specifications
Items SBS-300 SBS-285C AUTO CUT SBS-285
Motor AC-Motor:3phase,1.6hp AC-Motor:3phase,1.6hp AC-Motor:3phase,1.5hp
Blade Speed 37+76mpm 35+70mpm 35+70mpm
Blade Size(mm) 2965x27x0.9 2730x27x0.9 2730x27x0.9
Cooling YES YES YES
Dimension(mm) 1550x800x1480 1550x800x1480 1350x715x1480
N.W./G.W. 310/340kgs 295/325kgs 260/290kgs
Packing(mm) 1580x760x1700 1580x760x1700 1385x745x935
20'load 22sets 22sets 24sets

SBS-300 (mm) SBS-285C (mm)
0° 100 260 240 285x220 90° 80 240 220 270x220
45° 80 240 215 220x215 45°li 60 200 200 200x200
60° 50 160 130 160x130 60°li 40 125 125 125x125
-45° 80 190 190 190x190
