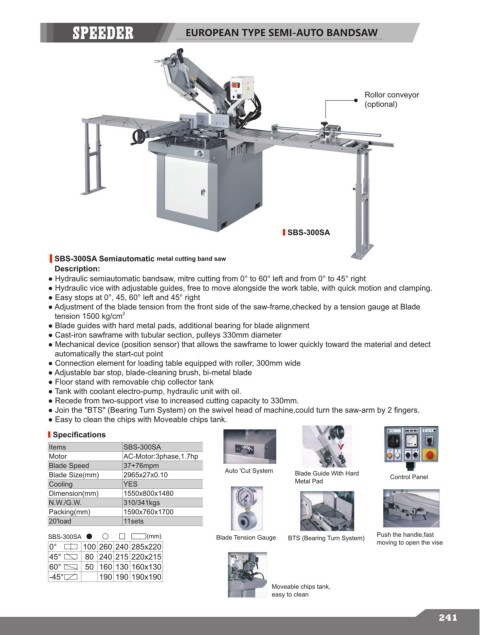

EUROPEAN TYPE SEMI-AUTO BANDSAW

Rollor conveyor
(optional)

SBS-300SA

SBS-300SA Semiautomatic metal cutting band saw
Description:
● Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right
● Hydraulic vice with adjustable guides, free to move alongside the work table, with quick motion and clamping.
● Easy stops at 0°, 45, 60° left and 45° right
● Adjustment of the blade tension from the front side of the saw-frame,checked by a tension gauge at Blade
tension 1500 kg/cm 2
● Blade guides with hard metal pads, additional bearing for blade alignment
● Cast-iron sawframe with tubular section, pulleys 330mm diameter
● Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material and detect
automatically the start-cut point
● Connection element for loading table equipped with roller, 300mm wide
● Adjustable bar stop, blade-cleaning brush, bi-metal blade
● Floor stand with removable chip collector tank
● Tank with coolant electro-pump, hydraulic unit with oil.
● Recede from two-support vise to increased cutting capacity to 330mm.
● Join the "BTS" (Bearing Turn System) on the swivel head of machine,could turn the saw-arm by 2 fingers.
● Easy to clean the chips with Moveable chips tank.
Specifications

Items SBS-300SA
Motor AC-Motor:3phase,1.7hp
Blade Speed 37+76mpm
Blade Size(mm) 2965x27x0.10 Auto 'Cut System Blade Guide With Hard Control Panel
Cooling YES Metal Pad
Dimension(mm) 1550x800x1480
N.W./G.W. 310/341kgs
Packing(mm) 1590x760x1700
20'load 11sets

SBS-300SA (mm) Blade Tension Gauge BTS (Bearing Turn System) Push the handle,fast
0° 100 260 240 285x220 moving to open the vise
45° 80 240 215 220x215
60° 50 160 130 160x130
-45° 190 190 190x190
Moveable chips tank,
easy to clean
