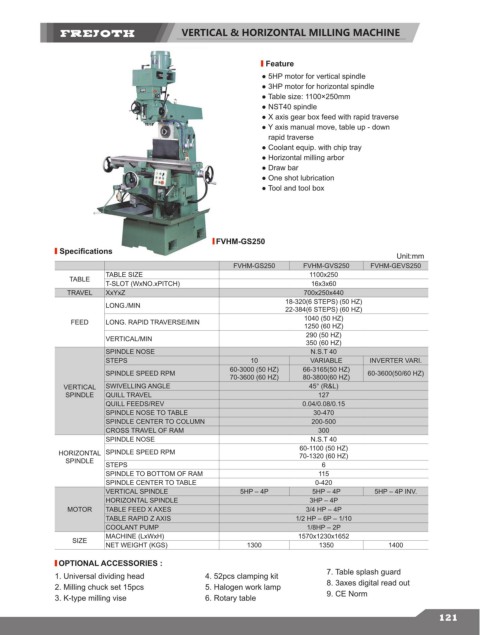

VERTICAL & HORIZONTAL MILLING MACHINE

Feature
● 5HP motor for vertical spindle
● 3HP motor for horizontal spindle
● Table size: 1100×250mm
● NST40 spindle
● X axis gear box feed with rapid traverse
● Y axis manual move, table up - down
rapid traverse
● Coolant equip. with chip tray
● Horizontal milling arbor
● Draw bar
● One shot lubrication
● Tool and tool box

FVHM-GS250
Specifications
Unit:mm
FVHM-GS250 FVHM-GVS250 FVHM-GEVS250
TABLE SIZE 1100x250
TABLE
T-SLOT (WxNO.xPITCH) 16x3x60
TRAVEL XxYxZ 700x250x440
18-320(6 STEPS) (50 HZ)
LONG./MIN
22-384(6 STEPS) (60 HZ)
1040 (50 HZ)
FEED LONG. RAPID TRAVERSE/MIN
1250 (60 HZ)
290 (50 HZ)
VERTICAL/MIN
350 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 10 VARIABLE INVERTER VARI.
60-3000 (50 HZ) 66-3165(50 HZ)
SPINDLE SPEED RPM 60-3600(50/60 HZ)
70-3600 (60 HZ) 80-3800(60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L)
SPINDLE QUILL TRAVEL 127
QUILL FEEDS/REV 0.04/0.08/0.15
SPINDLE NOSE TO TABLE 30-470
SPINDLE CENTER TO COLUMN 200-500
CROSS TRAVEL OF RAM 300
SPINDLE NOSE N.S.T 40
60-1100 (50 HZ)
HORIZONTAL SPINDLE SPEED RPM 70-1320 (60 HZ)
SPINDLE
STEPS 6
SPINDLE TO BOTTOM OF RAM 115
SPINDLE CENTER TO TABLE 0-420
VERTICAL SPINDLE 5HP – 4P 5HP – 4P 5HP – 4P INV.
HORIZONTAL SPINDLE 3HP – 4P
MOTOR TABLE FEED X AXES 3/4 HP – 4P
TABLE RAPID Z AXIS 1/2 HP – 6P – 1/10
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1570x1230x1652
SIZE
NET WEIGHT (KGS) 1300 1350 1400
OPTIONAL ACCESSORIES :
1. Universal dividing head 4. 52pcs clamping kit 7. Table splash guard
2. Milling chuck set 15pcs 5. Halogen work lamp 8. 3axes digital read out
3. K-type milling vise 6. Rotary table 9. CE Norm
