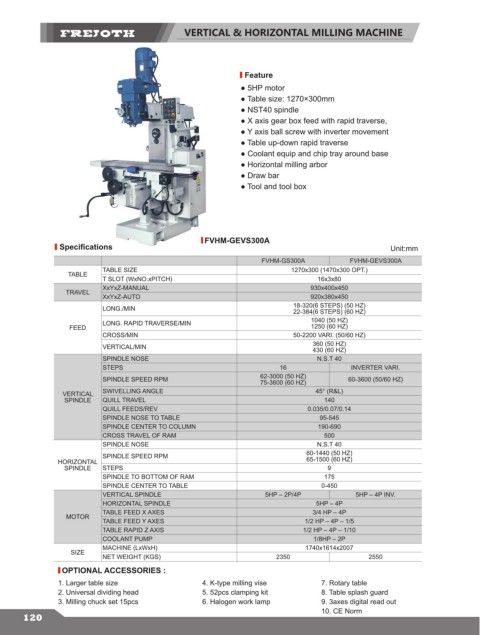

VERTICAL & HORIZONTAL MILLING MACHINE

Feature
● 5HP motor
● Table size: 1270×300mm
● NST40 spindle
● X axis gear box feed with rapid traverse,
● Y axis ball screw with inverter movement
● Table up-down rapid traverse
● Coolant equip and chip tray around base
● Horizontal milling arbor
● Draw bar
● Tool and tool box

FVHM-GEVS300A
Specifications Unit:mm
FVHM-GS300A FVHM-GEVS300A
TABLE SIZE 1270x300 (1470x300 OPT.)
TABLE
T SLOT (WxNO.xPITCH) 16x3x80
XxYxZ-MANUAL 930x400x450
TRAVEL
XxYxZ-AUTO 920x380x450
LONG./MIN 18-320(6 STEPS) (50 HZ)
22-384(6 STEPS) (60 HZ)
LONG. RAPID TRAVERSE/MIN 1040 (50 HZ)
FEED 1250 (60 HZ)
CROSS/MIN 50-2200 VARI. (50/60 HZ)
VERTICAL/MIN 360 (50 HZ)
430 (60 HZ)
SPINDLE NOSE N.S.T 40
STEPS 16 INVERTER VARI.
SPINDLE SPEED RPM 62-3000 (50 HZ) 60-3600 (50/60 HZ)
75-3600 (60 HZ)
VERTICAL SWIVELLING ANGLE 45° (R&L)
SPINDLE QUILL TRAVEL 140
QUILL FEEDS/REV 0.035/0.07/0.14
SPINDLE NOSE TO TABLE 95-545
SPINDLE CENTER TO COLUMN 190-690
CROSS TRAVEL OF RAM 500
SPINDLE NOSE N.S.T 40
SPINDLE SPEED RPM 60-1440 (50 HZ)
HORIZONTAL 65-1500 (60 HZ)
SPINDLE STEPS 9
SPINDLE TO BOTTOM OF RAM 175
SPINDLE CENTER TO TABLE 0-450
VERTICAL SPINDLE 5HP – 2P/4P 5HP – 4P INV.
HORIZONTAL SPINDLE 5HP – 4P
TABLE FEED X AXES 3/4 HP – 4P
MOTOR
TABLE FEED Y AXES 1/2 HP – 4P – 1/5
TABLE RAPID Z AXIS 1/2 HP – 4P – 1/10
COOLANT PUMP 1/8HP – 2P
MACHINE (LxWxH) 1740x1614x2007
SIZE
NET WEIGHT (KGS) 2350 2550
OPTIONAL ACCESSORIES :
1. Larger table size 4. K-type milling vise 7. Rotary table
2. Universal dividing head 5. 52pcs clamping kit 8. Table splash guard
3. Milling chuck set 15pcs 6. Halogen work lamp 9. 3axes digital read out
10. CE Norm
