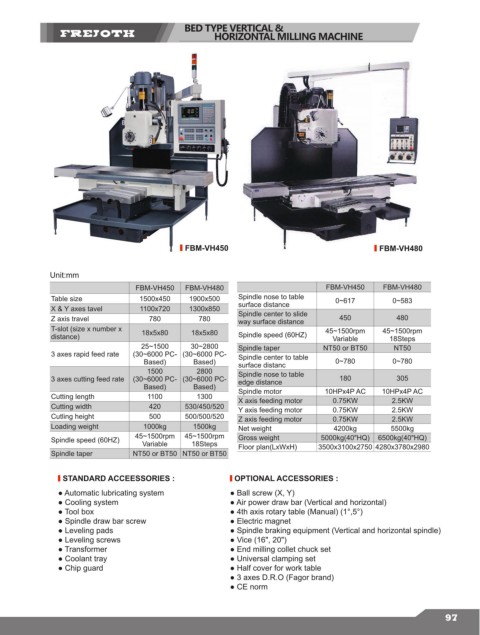

BED TYPE VERTICAL &
HORIZONTAL MILLING MACHINE

FBM-VH450 FBM-VH480

Unit:mm
FBM-VH450 FBM-VH480 FBM-VH450 FBM-VH480
Table size 1500x450 1900x500 Spindle nose to table 0~617 0~583
X & Y axes tavel 1100x720 1300x850 surface distance
Z axis travel 780 780 Spindle center to slide 450 480
way surface distance
T-slot (size x number x 18x5x80 18x5x80 45~1500rpm 45~1500rpm
distance) Spindle speed (60HZ) Variable 18Steps
25~1500 30~2800 Spindle taper NT50 or BT50 NT50
3 axes rapid feed rate (30~6000 PC- (30~6000 PC- Spindle center to table
Based) Based) surface distanc 0~780 0~780
1500 2800 Spindle nose to table
3 axes cutting feed rate (30~6000 PC- (30~6000 PC- edge distance 180 305
Based) Based)
Cutting length 1100 1300 Spindle motor 10HPx4P AC 10HPx4P AC
0.75KW
X axis feeding motor
2.5KW
Cutting width 420 530/450/520 Y axis feeding motor 0.75KW 2.5KW
Cutling height 500 500/500/520 Z axis feeding motor 0.75KW 2.5KW
Loading weight 1000kg 1500kg Net weight 4200kg 5500kg
45~1500rpm 45~1500rpm Gross weight 5000kg(40"HQ) 6500kg(40"HQ)
Spindle speed (60HZ)
Variable 18Steps Floor plan(LxWxH) 3500x3100x2750 4280x3780x2980
Spindle taper NT50 or BT50 NT50 or BT50

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● Automatic lubricating system ● Ball screw (X, Y)
● Cooling system ● Air power draw bar (Vertical and horizontal)
● Tool box ● 4th axis rotary table (Manual) (1°,5°)
● Spindle draw bar screw ● Electric magnet
● Leveling pads ● Spindle braking equipment (Vertical and horizontal spindle)
● Leveling screws ● Vice (16", 20")
● Transformer ● End milling collet chuck set
● Coolant tray ● Universal clamping set
● Chip guard ● Half cover for work table
● 3 axes D.R.O (Fagor brand)
● CE norm
