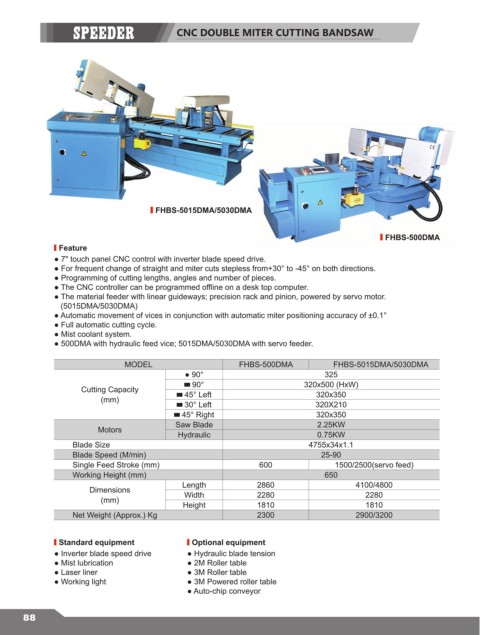

CNC DOUBLE MITER CUTTING BANDSAW



























                                         FHBS-5015DMA/5030DMA


                                                                                                   FHBS-500DMA
                Feature
               ● 7" touch panel CNC control with inverter blade speed drive.
               ● For frequent change of straight and miter cuts stepless from+30° to -45° on both directions.
               ● Programming of cutting lengths, angles and number of pieces.
               ● The CNC controller can be programmed offline on a desk top computer.
               ● The material feeder with linear guideways; precision rack and pinion, powered by servo motor.
                  (5015DMA/5030DMA)
               ● Automatic movement of vices in conjunction with automatic miter positioning accuracy of ±0.1°
               ● Full automatic cutting cycle.
               ● Mist coolant system.
               ● 500DMA with hydraulic feed vice; 5015DMA/5030DMA with servo feeder.

                                 MODEL                        FHBS-500DMA                FHBS-5015DMA/5030DMA
                                                ● 90°                               325
                                                ▄  90°                         320x500 (HxW)
                      Cutting Capacity        ▄  45° Left                         320x350
                           (mm)               ▄  30° Left                         320X210
                                             ▄  45° Right                         320x350
                                              Saw Blade                           2.25KW
                          Motors
                                              Hydraulic                           0.75KW
                       Blade Size                                               4755x34x1.1
                       Blade Speed (M/min)                                         25-90
                       Single Feed Stroke (mm)                     600                1500/2500(servo feed)
                       Working Height (mm)                                          650
                                               Length              2860                     4100/4800
                        Dimensions
                           (mm)                 Width              2280                       2280
                                                Height             1810                       1810
                       Net Weight (Approx.) Kg                     2300                     2900/3200



                Standard equipment                Optional equipment
               ● Inverter blade speed drive      ● Hydraulic blade tension
               ● Mist lubrication                ● 2M Roller table
               ● Laser liner                     ● 3M Roller table
               ● Working light                   ● 3M Powered roller table
                                                 ● Auto-chip conveyor
