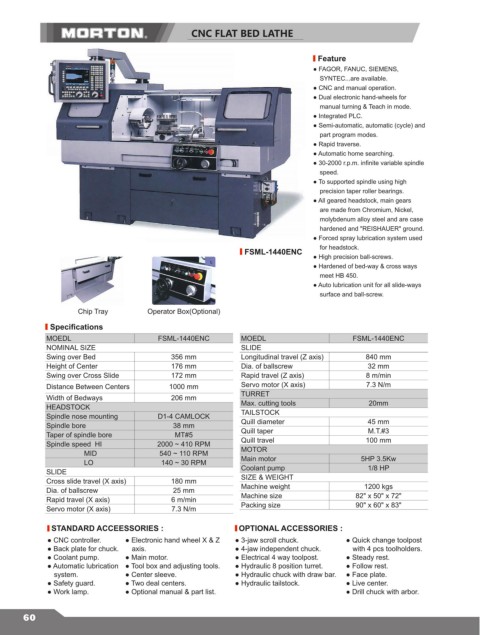

CNC FLAT BED LATHE

Feature
● FAGOR, FANUC, SIEMENS,
SYNTEC...are available.
● CNC and manual operation.
● Dual electronic hand-wheels for
manual turning & Teach in mode.
● Integrated PLC.
● Semi-automatic, automatic (cycle) and
part program modes.
● Rapid traverse.
● Automatic home searching.
● 30-2000 r.p.m. infinite variable spindle
speed.
● To supported spindle using high
precision taper roller bearings.
● All geared headstock, main gears
are made from Chromium, Nickel,
molybdenum alloy steel and are case
hardened and "REISHAUER" ground.
● Forced spray lubrication system used
FSML-1440ENC for headstock.
● High precision ball-screws.
● Hardened of bed-way & cross ways
meet HB 450.
● Auto lubrication unit for all slide-ways
surface and ball-screw.

Chip Tray Operator Box(Optional)
Specifications
MOEDL FSML-1440ENC MOEDL FSML-1440ENC
NOMINAL SIZE SLIDE
Swing over Bed 356 mm Longitudinal travel (Z axis) 840 mm
Height of Center 176 mm Dia. of ballscrew 32 mm
Swing over Cross Slide 172 mm Rapid travel (Z axis) 8 m/min
Distance Between Centers 1000 mm Servo motor (X axis) 7.3 N/m
Width of Bedways 206 mm TURRET
HEADSTOCK Max. cutting tools 20mm
Spindle nose mounting D1-4 CAMLOCK TAILSTOCK
Spindle bore 38 mm Quill diameter 45 mm
Taper of spindle bore MT#5 Quill taper M.T.#3
Spindle speed HI 2000 ~ 410 RPM Quill travel 100 mm
MID 540 ~ 110 RPM MOTOR
LO 140 ~ 30 RPM Main motor 5HP 3.5Kw
SLIDE Coolant pump 1/8 HP
Cross slide travel (X axis) 180 mm SIZE & WEIGHT
Dia. of ballscrew 25 mm Machine weight 1200 kgs
Rapid travel (X axis) 6 m/min Machine size 82" x 50" x 72"
Servo motor (X axis) 7.3 N/m Packing size 90" x 60" x 83"

STANDARD ACCEESSORIES : OPTIONAL ACCESSORIES :
● CNC controller. ● Electronic hand wheel X & Z ● 3-jaw scroll chuck. ● Quick change toolpost
● Back plate for chuck. axis. ● 4-jaw independent chuck. with 4 pcs toolholders.
● Coolant pump. ● Main motor. ● Electrical 4 way toolpost. ● Steady rest.
● Automatic lubrication ● Tool box and adjusting tools. ● Hydraulic 8 position turret. ● Follow rest.
system. ● Center sleeve. ● Hydraulic chuck with draw bar. ● Face plate.
● Safety guard. ● Two deal centers. ● Hydraulic tailstock. ● Live center.
● Work lamp. ● Optional manual & part list. ● Drill chuck with arbor.
