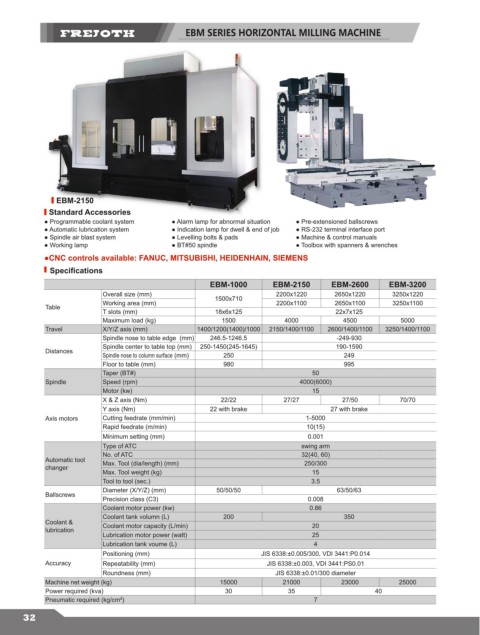

EBM SERIES HORIZONTAL MILLING MACHINE

EBM-2150
Standard Accessories
● Programmable coolant system ● Alarm lamp for abnormal situation ● Pre-extensioned ballscrews
● Automatic lubrication system ● Indication lamp for dwell & end of job ● RS-232 terminal interface port
● Spindle air blast system ● Levelling bolts & pads ● Machine & control manuals
● Working lamp ● BT#50 spindle ● Toolbox with spanners & wrenches
●CNC controls available: FANUC, MITSUBISHI, HEIDENHAIN, SIEMENS
Specifications
EBM-1000 EBM-2150 EBM-2600 EBM-3200
Overall size (mm) 2200x1220 2650x1220 3250x1220
Working area (mm) 1500x710 2200x1100 2650x1100 3250x1100
Table
T slots (mm) 18x6x125 22x7x125
Maximum load (kg) 1500 4000 4500 5000
Travel X/Y/Z axis (mm) 1400/1200(1400)/1000 2150/1400/1100 2600/1400/1100 3250/1400/1100
Spindle nose to table edge (mm) 246.5-1246.5 -249-930
Spindle center to table top (mm) 250-1450(245-1645) 190-1590
Distances
Spindle nose to column surface (mm) 250 249
Floor to table (mm) 980 995
Taper (BT#) 50
Spindle Speed (rpm) 4000(6000)
Motor (kw) 15
X & Z axis (Nm) 22/22 27/27 27/50 70/70
Y axis (Nm) 22 with brake 27 with brake
Axis motors Cutting feedrate (mm/min) 1-5000
Rapid feedrate (m/min) 10(15)
Minimum setting (mm) 0.001
Type of ATC swing arm
No. of ATC 32(40, 60)
Automatic tool Max. Tool (dia/length) (mm) 250/300
changer
Max. Tool weight (kg) 15
Tool to tool (sec.) 3.5
Diameter (X/Y/Z) (mm) 50/50/50 63/50/63
Ballscrews
Precision class (C3) 0.008
Coolant motor power (kw) 0.86
Coolant tank volumn (L) 200 350
Coolant & Coolant motor capacity (L/min) 20
lubrication
Lubrication motor power (watt) 25
Lubrication tank voume (L) 4
Positioning (mm) JIS 6338:±0.005/300, VDI 3441:P0.014
Accuracy Repeatability (mm) JIS 6338:±0.003, VDI 3441:PS0.01
Roundness (mm) JIS 6338:±0.01/300 diameter
Machine net weight (kg) 15000 21000 23000 25000
Power required (kva) 30 35 40
Pneumatic required (kg/cm²) 7
