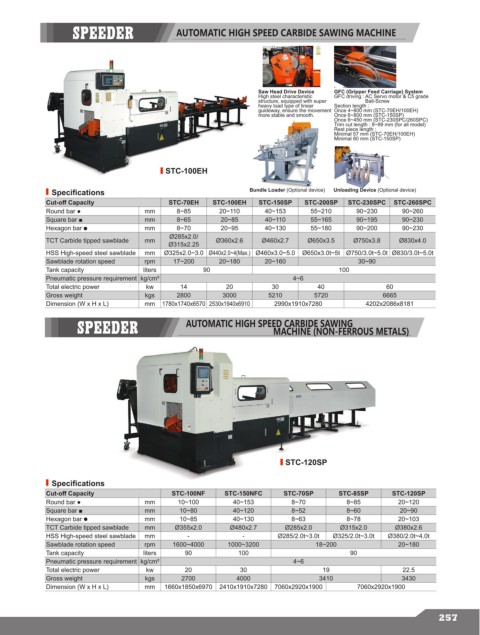

AUTOMATIC HIGH SPEED CARBIDE SAWING MACHINE

Saw Head Drive Device GFC (Gripper Feed Carriage) System
High steel characteristic GFC driving : AC Servo motor & C5 grade
structure, equipped with super Ball-Screw
heavy load type of linear Section length :
guideway, ensure the movement Once 4~800 mm (STC-70EH/100EH)
more stable and smooth. Once 6~800 mm (STC-150SP)
Once 6~450 mm (STC-230SPC/260SPC)
Trim cut length : 8~99 mm (for all model)
Rest piece length :
Minimal 57 mm (STC-70EH/100EH)
Minimal 80 mm (STC-150SP)
STC-100EH

Specifications Bundle Loader (Optional device) Unloading Device (Optional device)
Cut-off Capacity STC-70EH STC-100EH STC-150SP STC-200SP STC-230SPC STC-260SPC
Round bar ● mm 8~85 20~110 40~153 55~210 90~230 90~260
Square bar ■ mm 8~65 20~85 40~110 55~165 90~195 90~230
Hexagon bar mm 8~70 20~95 40~130 55~180 90~200 90~230
Ø285x2.0/
TCT Carbide tipped sawblade mm Ø360x2.6 Ø460x2.7 Ø650x3.5 Ø750x3.8 Ø830x4.0
Ø315x2.25
HSS High-speed steel sawblade mm Ø325x2.0~3.0 Ø440x2.0~4(Max.) Ø460x3.0~5.0 Ø650x3.0t~5t Ø750/3.0t~5.0t Ø830/3.0t~5.0t
Sawblade rotation speed rpm 17~200 20~180 20~160 30~90
Tank capacity liters 90 100
Pneumatic pressure requirement kg/cm² 4~6
Total electric power kw 14 20 30 40 60
Gross weight kgs 2800 3000 5210 5720 6665
Dimension (W x H x L) mm 1780x1740x6570 2530x1940x6910 2990x1910x7280 4202x2086x8181

AUTOMATIC HIGH SPEED CARBIDE SAWING
MACHINE (NON-FERROUS METALS)

STC-120SP

Specifications
Cut-off Capacity STC-100NF STC-150NFC STC-70SP STC-85SP STC-120SP
Round bar ● mm 10~100 40~153 8~70 8~85 20~120
Square bar ■ mm 10~80 40~120 8~52 8~60 20~90
Hexagon bar mm 10~85 40~130 8~63 8~78 20~103
TCT Carbide tipped sawblade mm Ø355x2.0 Ø480x2.7 Ø285x2.0 Ø315x2.0 Ø380x2.6
HSS High-speed steel sawblade mm - - Ø285/2.0t~3.0t Ø325/2.0t~3.0t Ø380/2.0t~4.0t
Sawblade rotation speed rpm 1600~4000 1000~3200 18~200 20~180
Tank capacity liters 90 100 90
Pneumatic pressure requirement kg/cm² 4~6
Total electric power kw 20 30 19 22.5
Gross weight kgs 2700 4000 3410 3430
Dimension (W x H x L) mm 1660x1850x6970 2410x1910x7280 7060x2920x1900 7060x2920x1900
