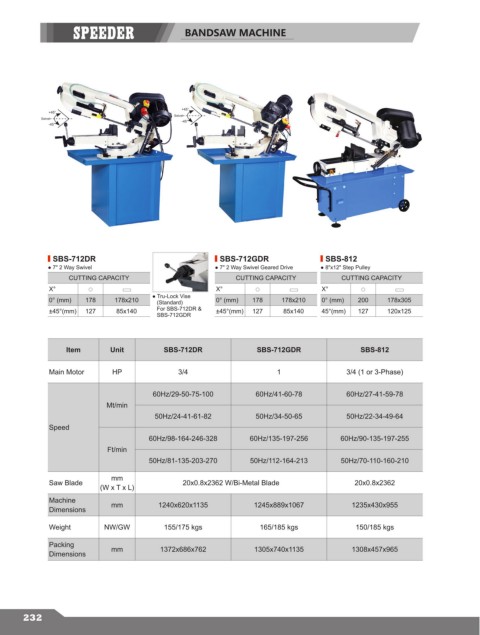

BANDSAW MACHINE

+45°
+45°
Swivel Swivel -45°
-45°

SBS-712DR SBS-712GDR SBS-812
● 7" 2 Way Swivel ● 7" 2 Way Swivel Geared Drive ● 8"x12" Step Pulley
CUTTING CAPACITY CUTTING CAPACITY CUTTING CAPACITY
X° X° X°
0° (mm) 178 178x210 ● Tru-Lock Vise 0° (mm) 178 178x210 0° (mm) 200 178x305
(Standard)
±45°(mm) 127 85x140 For SBS-712DR & ±45°(mm) 127 85x140 45°(mm) 127 120x125
SBS-712GDR

ltem Unit SBS-712DR SBS-712GDR SBS-812

Main Motor HP 3/4 1 3/4 (1 or 3-Phase)

60Hz/29-50-75-100 60Hz/41-60-78 60Hz/27-41-59-78
Mt/min
50Hz/24-41-61-82 50Hz/34-50-65 50Hz/22-34-49-64
Speed
60Hz/98-164-246-328 60Hz/135-197-256 60Hz/90-135-197-255
Ft/min
50Hz/81-135-203-270 50Hz/112-164-213 50Hz/70-110-160-210

mm
Saw Blade 20x0.8x2362 W/Bi-Metal Blade 20x0.8x2362
(W x T x L)
Machine mm 1240x620x1135 1245x889x1067 1235x430x955
Dimensions
Weight NW/GW 155/175 kgs 165/185 kgs 150/185 kgs

Packing mm 1372x686x762 1305x740x1135 1308x457x965
Dimensions
