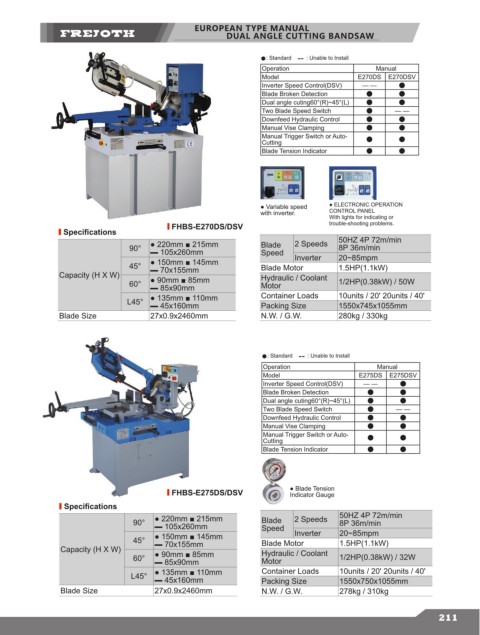

EUROPEAN TYPE MANUAL
DUAL ANGLE CUTTING BANDSAW

● : Standard -- : Unable to Install
Operation Manual
Model E270DS E270DSV
Inverter Speed Control(DSV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60°(R)~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Manual Vise Clamping ● ●
Manual Trigger Switch or Auto-
Cutting ● ●
Blade Tension Indicator ● ●

● Variable speed ● ELECTRONIC OPERATION
with inverter. CONTROL PANEL
With lights for indicating or
FHBS-E270DS/DSV trouble-shooting problems.
Specifications 50HZ 4P 72m/min

90° ● 220mm ■ 215mm Blade 2 Speeds 8P 36m/min
▬ 105x260mm
Speed
Inverter
45° ● 150mm ■ 145mm Blade Motor 20~85mpm
1.5HP(1.1kW)
▬ 70x155mm
Capacity (H X W) Hydraulic / Coolant
60° ● 90mm ■ 85mm Motor 1/2HP(0.38kW) / 50W
▬ 85x90mm
L45° ● 135mm ■ 110mm Container Loads 10units / 20' 20units / 40'
Packing Size
1550x745x1055mm
▬ 45x160mm
Blade Size 27x0.9x2460mm N.W. / G.W. 280kg / 330kg

● : Standard -- : Unable to Install
Operation Manual
Model E275DS E275DSV
Inverter Speed Control(DSV) — — ●
Blade Broken Detection ● ●
Dual angle cuting60°(R)~45°(L) ● ●
Two Blade Speed Switch ● — —
Downfeed Hydraulic Control ● ●
Manual Vise Clamping ● ●
Manual Trigger Switch or Auto-
Cutting ● ●
Blade Tension Indicator ● ●

FHBS-E275DS/DSV ● Blade Tension
Indicator Gauge
Specifications

8P 36m/min
90° ● 220mm ■ 215mm Blade 2 Speeds 50HZ 4P 72m/min
▬ 105x260mm
Speed
Inverter
45° ● 150mm ■ 145mm Blade Motor 20~85mpm
1.5HP(1.1kW)
▬ 70x155mm
Capacity (H X W) Hydraulic / Coolant
60° ● 90mm ■ 85mm Motor 1/2HP(0.38kW) / 32W
▬ 85x90mm
L45° ● 135mm ■ 110mm Container Loads 10units / 20' 20units / 40'
▬ 45x160mm
1550x750x1055mm
Packing Size
Blade Size 27x0.9x2460mm N.W. / G.W. 278kg / 310kg
