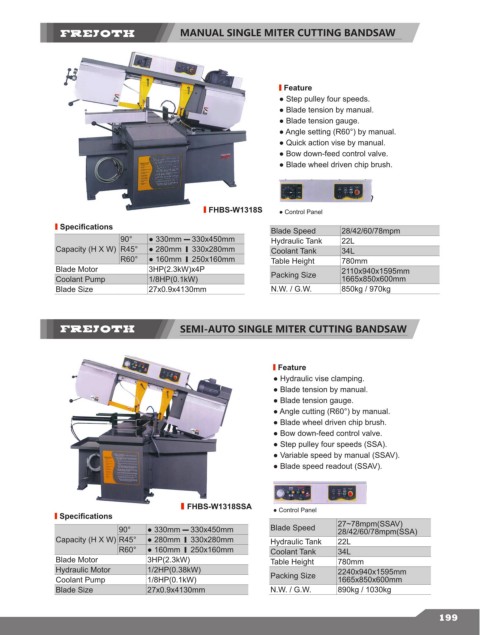

MANUAL SINGLE MITER CUTTING BANDSAW

Feature
● Step pulley four speeds.
● Blade tension by manual.
● Blade tension gauge.
● Angle setting (R60°) by manual.
● Quick action vise by manual.
● Bow down-feed control valve.
● Blade wheel driven chip brush.

FHBS-W1318S ● Control Panel
Specifications Blade Speed 28/42/60/78mpm
90° ● 330mm ▬ 330x450mm Hydraulic Tank 22L
Capacity (H X W) R45° ● 280mm ▌ 330x280mm Coolant Tank 34L
R60° ● 160mm ▌ 250x160mm Table Height 780mm
Blade Motor 3HP(2.3kW)x4P 2110x940x1595mm
Coolant Pump 1/8HP(0.1kW) Packing Size 1665x850x600mm
Blade Size 27x0.9x4130mm N.W. / G.W. 850kg / 970kg

SEMI-AUTO SINGLE MITER CUTTING BANDSAW

Feature
● Hydraulic vise clamping.
● Blade tension by manual.
● Blade tension gauge.
● Angle cutting (R60°) by manual.
● Blade wheel driven chip brush.
● Bow down-feed control valve.
● Step pulley four speeds (SSA).
● Variable speed by manual (SSAV).
● Blade speed readout (SSAV).

FHBS-W1318SSA ● Control Panel
Specifications
90° ● 330mm ▬ 330x450mm Blade Speed 27~78mpm(SSAV)
28/42/60/78mpm(SSA)
Capacity (H X W) R45° ● 280mm ▌ 330x280mm Hydraulic Tank 22L
R60° ● 160mm ▌ 250x160mm Coolant Tank 34L
Blade Motor 3HP(2.3kW) Table Height 780mm
Hydraulic Motor 1/2HP(0.38kW) 2240x940x1595mm
Coolant Pump 1/8HP(0.1kW) Packing Size 1665x850x600mm
Blade Size 27x0.9x4130mm N.W. / G.W. 890kg / 1030kg

199
