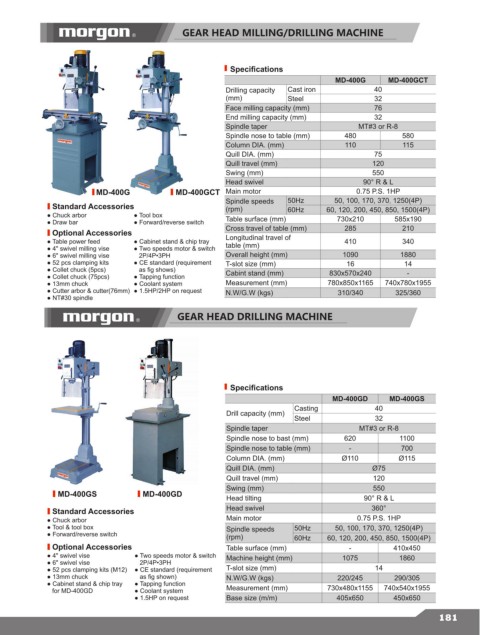

GEAR HEAD MILLING/DRILLING MACHINE

Specifications
MD-400G MD-400GCT
Drilling capacity Cast iron 40
(mm) Steel 32
Face milling capacity (mm) 76
End milling capacity (mm) 32
Spindle taper MT#3 or R-8
Spindle nose to table (mm) 480 580
Column DIA. (mm) 110 115
Quill DIA. (mm) 75
Quill travel (mm) 120
Swing (mm) 550
Head swivel 90° R & L
MD-400G MD-400GCT Main motor 0.75 P.S. 1HP
Spindle speeds 50Hz 50, 100, 170, 370, 1250(4P)
Standard Accessories (rpm) 60Hz 60, 120, 200, 450, 850, 1500(4P)
● Chuck arbor ● Tool box
● Draw bar ● Forward/reverse switch Table surface (mm) 730x210 585x190
Cross travel of table (mm)
285
210
Optional Accessories Longitudinal travel of
● Table power feed ● Cabinet stand & chip tray table (mm) 410 340
● 4" swivel milling vise ● Two speeds motor & switch
● 6" swivel milling vise 2P/4P•3PH Overall height (mm) 1090 1880
● 52 pcs clamping kits ● CE standard (requirement T-slot size (mm) 16 14
● Collet chuck (5pcs) as fig shows) Cabint stand (mm) 830x570x240 -
● Collet chuck (75pcs) ● Tapping function
● 13mm chuck ● Coolant system Measurement (mm) 780x850x1165 740x780x1955
● Cutter arbor & cutter(76mm) ● 1.5HP/2HP on request N.W/G.W (kgs) 310/340 325/360
● NT#30 spindle

GEAR HEAD DRILLING MACHINE

Specifications
MD-400GD MD-400GS
Casting 40
Drill capacity (mm)
Steel 32
Spindle taper MT#3 or R-8
Spindle nose to bast (mm) 620 1100
Spindle nose to table (mm) - 700
Column DIA. (mm) Ø110 Ø115
Quill DIA. (mm) Ø75
Quill travel (mm) 120
Swing (mm) 550
MD-400GS MD-400GD
Head tilting 90° R & L
Standard Accessories Head swivel 360°
● Chuck arbor Main motor 0.75 P.S. 1HP
● Tool & tool box Spindle speeds 50Hz 50, 100, 170, 370, 1250(4P)
● Forward/reverse switch (rpm) 60Hz 60, 120, 200, 450, 850, 1500(4P)
Optional Accessories Table surface (mm) - 410x450
● 4" swivel vise ● Two speeds motor & switch Machine height (mm) 1075 1860
● 6" swivel vise 2P/4P•3PH
● 52 pcs clamping kits (M12) ● CE standard (requirement T-slot size (mm) 14
● 13mm chuck as fig shown) N.W/G.W (kgs) 220/245 290/305
● Cabinet stand & chip tray ● Tapping function
for MD-400GD ● Coolant system Measurement (mm) 730x480x1155 740x540x1955
● 1.5HP on request Base size (m/m) 405x650 450x650
