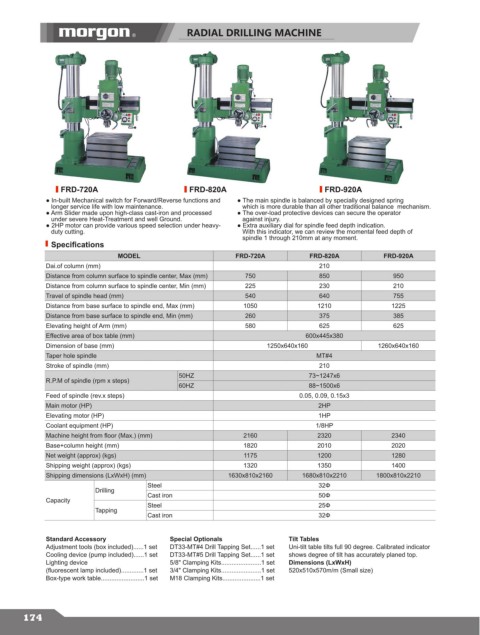

RADIAL DRILLING MACHINE

FRD-720A FRD-820A FRD-920A
● In-built Mechanical switch for Forward/Reverse functions and ● The main spindle is balanced by specially designed spring
longer service life with low maintenance. which is more durable than all other traditional balance mechanism.
● Arm Slider made upon high-class cast-iron and processed ● The over-load protective devices can secure the operator
under severe Heat-Treatment and well Ground. against injury.
● 2HP motor can provide various speed selection under heavy- ● Extra auxiliary dial for spindle feed depth indication.
duty cutting. With this indicator, we can review the momental feed depth of
spindle 1 through 210mm at any moment.
Specifications
MODEL FRD-720A FRD-820A FRD-920A
Dai.of column (mm) 210
Distance from column surface to spindle center, Max (mm) 750 850 950
Distance from column surface to spindle center, Min (mm) 225 230 210
Travel of spindle head (mm) 540 640 755
Distance from base surface to spindle end, Max (mm) 1050 1210 1225
Distance from base surface to spindle end, Min (mm) 260 375 385
Elevating height of Arm (mm) 580 625 625
Effective area of box table (mm) 600x445x380
Dimension of base (mm) 1250x640x160 1260x640x160
Taper hole spindle MT#4
Stroke of spindle (mm) 210
50HZ 73~1247x6
R.P.M of spindle (rpm x steps)
60HZ 88~1500x6
Feed of spindle (rev.x steps) 0.05, 0.09, 0.15x3
Main motor (HP) 2HP
Elevating motor (HP) 1HP
Coolant equipment (HP) 1/8HP
Machine height from floor (Max.) (mm) 2160 2320 2340
Base+column height (mm) 1820 2010 2020
Net weight (approx) (kgs) 1175 1200 1280
Shipping weight (approx) (kgs) 1320 1350 1400
Shipping dimensions (LxWxH) (mm) 1630x810x2160 1680x810x2210 1800x810x2210
Steel 32Ф
Drilling
Capacity Cast iron 50Ф
Tapping Steel 25Ф
Cast iron 32Ф

Standard Accessory Special Optionals Tilt Tables
Adjustment tools (box included)......1 set DT33-MT#4 Drill Tapping Set......1 set Uni-tilt table tilts full 90 degree. Calibrated indicator
Cooling device (pump included)......1 set DT33-MT#5 Drill Tapping Set......1 set shows degree of tilt has accurately planed top.
Lighting device 5/8" Clamping Kits.......................1 set Dimensions (LxWxH)
(fluorescent lamp included).............1 set 3/4" Clamping Kits.......................1 set 520x510x570m/m (Small size)
Box-type work table.........................1 set M18 Clamping Kits......................1 set
