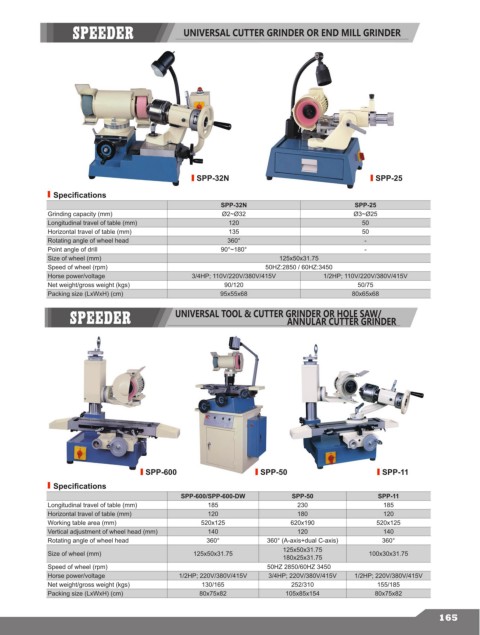

UNIVERSAL CUTTER GRINDER OR END MILL GRINDER

SPP-32N SPP-25
Specifications
SPP-32N SPP-25
Grinding capacity (mm) Ø2~Ø32 Ø3~Ø25
Longitudinal travel of table (mm) 120 50
Horizontal travel of table (mm) 135 50
Rotating angle of wheel head 360° -
Point angle of drill 90°~180° -
Size of wheel (mm) 125x50x31.75
Speed of wheel (rpm) 50HZ:2850 / 60HZ:3450
Horse power/voltage 3/4HP; 110V/220V/380V/415V 1/2HP; 110V/220V/380V/415V
Net weight/gross weight (kgs) 90/120 50/75
Packing size (LxWxH) (cm) 95x55x68 80x65x68

UNIVERSAL TOOL & CUTTER GRINDER OR HOLE SAW/
ANNULAR CUTTER GRINDER

SPP-600 SPP-50 SPP-11

Specifications
SPP-600/SPP-600-DW SPP-50 SPP-11
Longitudinal travel of table (mm) 185 230 185
Horizontal travel of table (mm) 120 180 120
Working table area (mm) 520x125 620x190 520x125
Vertical adjustment of wheel head (mm) 140 120 140
Rotating angle of wheel head 360° 360° (A-axis+dual C-axis) 360°
125x50x31.75
Size of wheel (mm) 125x50x31.75 100x30x31.75
180x25x31.75
Speed of wheel (rpm) 50HZ 2850/60HZ 3450
Horse power/voltage 1/2HP; 220V/380V/415V 3/4HP; 220V/380V/415V 1/2HP; 220V/380V/415V
Net weight/gross weight (kgs) 130/165 252/310 155/185
Packing size (LxWxH) (cm) 80x75x82 105x85x154 80x75x82
