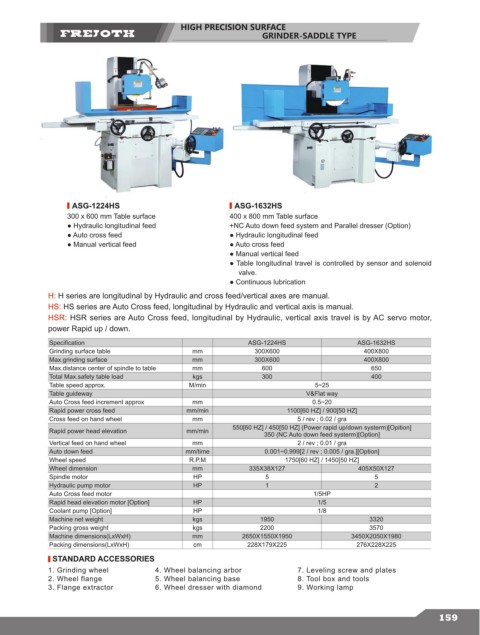

HIGH PRECISION SURFACE
GRINDER-SADDLE TYPE

ASG-1224HS ASG-1632HS
300 x 600 mm Table surface 400 x 800 mm Table surface
● Hydraulic longitudinal feed +NC Auto down feed system and Parallel dresser (Option)
● Auto cross feed ● Hydraulic longitudinal feed
● Manual vertical feed ● Auto cross feed
● Manual vertical feed
● Table longitudinal travel is controlled by sensor and solenoid
valve.
● Continuous lubrication
H: H series are longitudinal by Hydraulic and cross feed/vertical axes are manual.
HS: HS series are Auto Cross feed, longitudinal by Hydraulic and vertical axis is manual.
HSR: HSR series are Auto Cross feed, longitudinal by Hydraulic, vertical axis travel is by AC servo motor,
power Rapid up / down.
Specification ASG-1224HS ASG-1632HS
Grinding surface table mm 300X600 400X800
Max.grinding surface mm 300X600 400X800
Max.distance center of spindle to table mm 600 650
Total Max.safety table load kgs 300 400
Table speed approx. M/min 5~25
Table guideway V&Flat way
Auto Cross feed increment approx mm 0.5~20
Rapid power cross feed mm/min 1100[60 HZ] / 900[50 HZ]
Cross feed on hand wheel mm 5 / rev ; 0.02 / gra
550[60 HZ] / 450[50 HZ] (Power rapid up/down systerm)[Opition]
Rapid power head elevation mm/min
350 (NC Auto down feed systerm)[Option]
Vertical feed on hand wheel mm 2 / rev ; 0.01 / gra
Auto down feed mm/time 0.001~0.999[2 / rev ; 0.005 / gra.][Option]
Wheel speed R.P.M 1750[60 HZ] / 1450[50 HZ]
Wheel dimension mm 335X38X127 405X50X127
Spindle motor HP 5 5
Hydraulic pump motor HP 1 2
Auto Cross feed motor 1/5HP
Rapid head elevation motor [Option] HP 1/5
Coolant pump [Option] HP 1/8
Machine net weight kgs 1950 3320
Packing gross weight kgs 2200 3570
Machine dimensions(LxWxH) mm 2650X1550X1950 3450X2050X1980
Packing dimensions(LxWxH) cm 228X179X225 276X228X225
STANDARD ACCESSORIES
1. Grinding wheel 4. Wheel balancing arbor 7. Leveling screw and plates
2. Wheel flange 5. Wheel balancing base 8. Tool box and tools
3. Flange extractor 6. Wheel dresser with diamond 9. Working lamp

159
