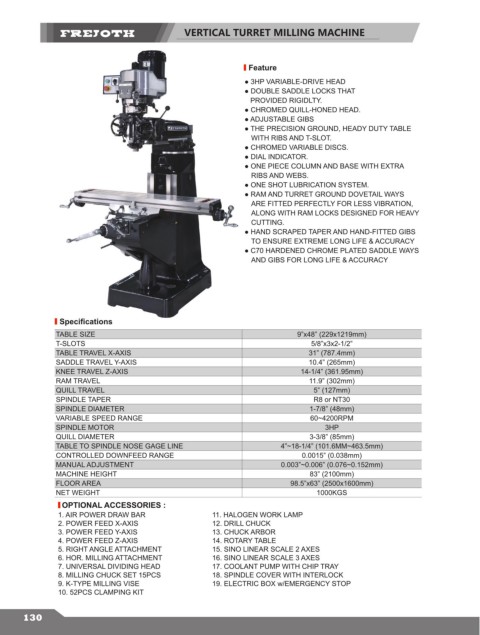

VERTICAL TURRET MILLING MACHINE

Feature
● 3HP VARIABLE-DRIVE HEAD
● DOUBLE SADDLE LOCKS THAT
PROVIDED RIGIDLTY.
● CHROMED QUILL-HONED HEAD.
● ADJUSTABLE GIBS
● THE PRECISION GROUND, HEADY DUTY TABLE
WITH RIBS AND T-SLOT.
● CHROMED VARIABLE DISCS.
● DIAL INDICATOR.
● ONE PIECE COLUMN AND BASE WITH EXTRA
RIBS AND WEBS.
● ONE SHOT LUBRICATION SYSTEM.
● RAM AND TURRET GROUND DOVETAIL WAYS
ARE FITTED PERFECTLY FOR LESS VIBRATION,
ALONG WITH RAM LOCKS DESIGNED FOR HEAVY
CUTTING.
● HAND SCRAPED TAPER AND HAND-FITTED GIBS
TO ENSURE EXTREME LONG LIFE & ACCURACY
● C70 HARDENED CHROME PLATED SADDLE WAYS
AND GIBS FOR LONG LIFE & ACCURACY

Specifications

TABLE SIZE 9”x48” (229x1219mm)
T-SLOTS 5/8”x3x2-1/2”
TABLE TRAVEL X-AXIS 31” (787.4mm)
SADDLE TRAVEL Y-AXIS 10.4” (265mm)
KNEE TRAVEL Z-AXIS 14-1/4” (361.95mm)
RAM TRAVEL 11.9” (302mm)
QUILL TRAVEL 5” (127mm)
SPINDLE TAPER R8 or NT30
SPINDLE DIAMETER 1-7/8” (48mm)
VARIABLE SPEED RANGE 60~4200RPM
SPINDLE MOTOR 3HP
QUILL DIAMETER 3-3/8” (85mm)
TABLE TO SPINDLE NOSE GAGE LINE 4”~18-1/4” (101.6MM~463.5mm)
CONTROLLED DOWNFEED RANGE 0.0015” (0.038mm)
MANUAL ADJUSTMENT 0.003”~0.006” (0.076~0.152mm)
MACHINE HEIGHT 83” (2100mm)
FLOOR AREA 98.5”x63” (2500x1600mm)
NET WEIGHT 1000KGS
OPTIONAL ACCESSORIES :
1. AIR POWER DRAW BAR 11. HALOGEN WORK LAMP
2. POWER FEED X-AXIS 12. DRILL CHUCK
3. POWER FEED Y-AXIS 13. CHUCK ARBOR
4. POWER FEED Z-AXIS 14. ROTARY TABLE
5. RIGHT ANGLE ATTACHMENT 15. SINO LINEAR SCALE 2 AXES
6. HOR. MILLING ATTACHMENT 16. SINO LINEAR SCALE 3 AXES
7. UNIVERSAL DIVIDING HEAD 17. COOLANT PUMP WITH CHIP TRAY
8. MILLING CHUCK SET 15PCS 18. SPINDLE COVER WITH INTERLOCK
9. K-TYPE MILLING VISE 19. ELECTRIC BOX w/EMERGENCY STOP
10. 52PCS CLAMPING KIT
